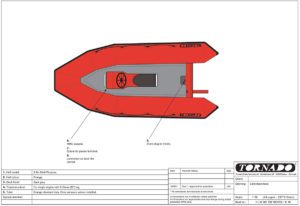

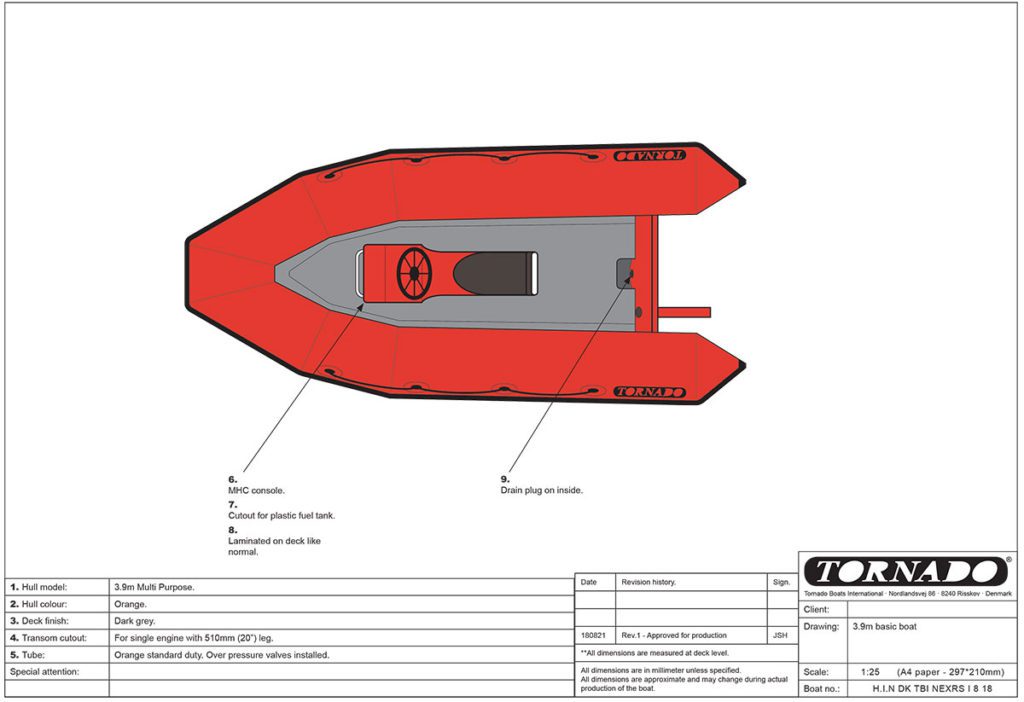

3.9M MULTI PURPOSE RIB

The 3.9m Multi Purpose RIB is the smallest of all Tornado’s and a great workboat as well as a perfect boat for the private user.

TECHNICAL SPECIFICATIONS

Length3900 mm
Beam1800 mm
Weight120 kg*
Tube diameter450 mm
Capacity600 kg / 4 persons
Max engine40 hk / 100 kg
Air chambers3
Internal length2700 mm
Internal width900 mm

* This is our estimate for a standard boat without options, engine and fuel.

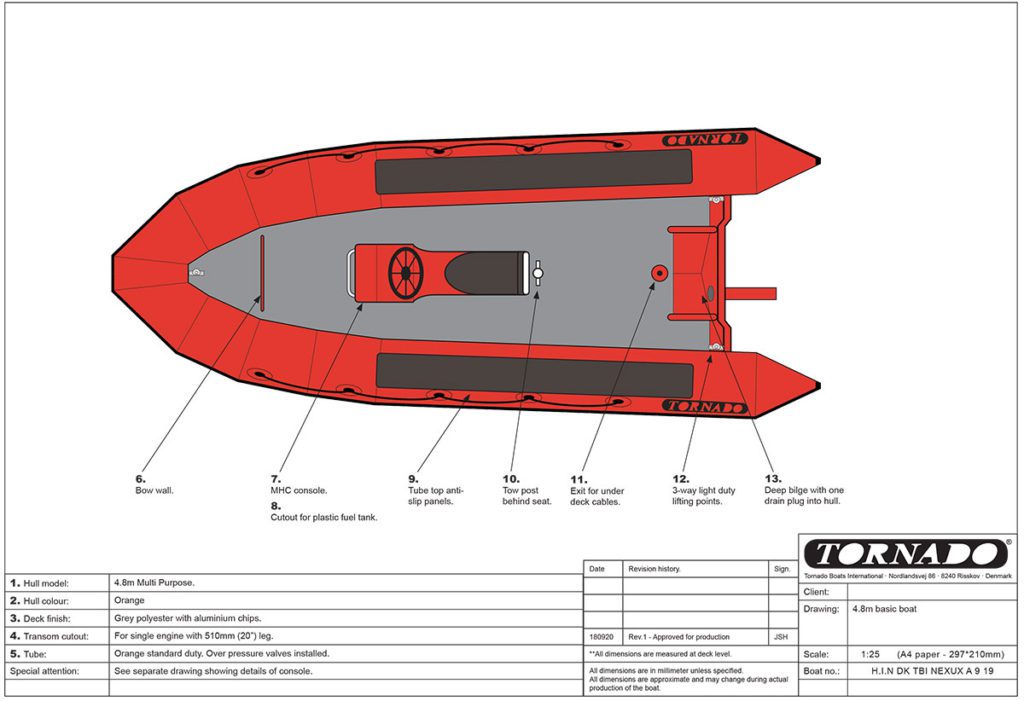

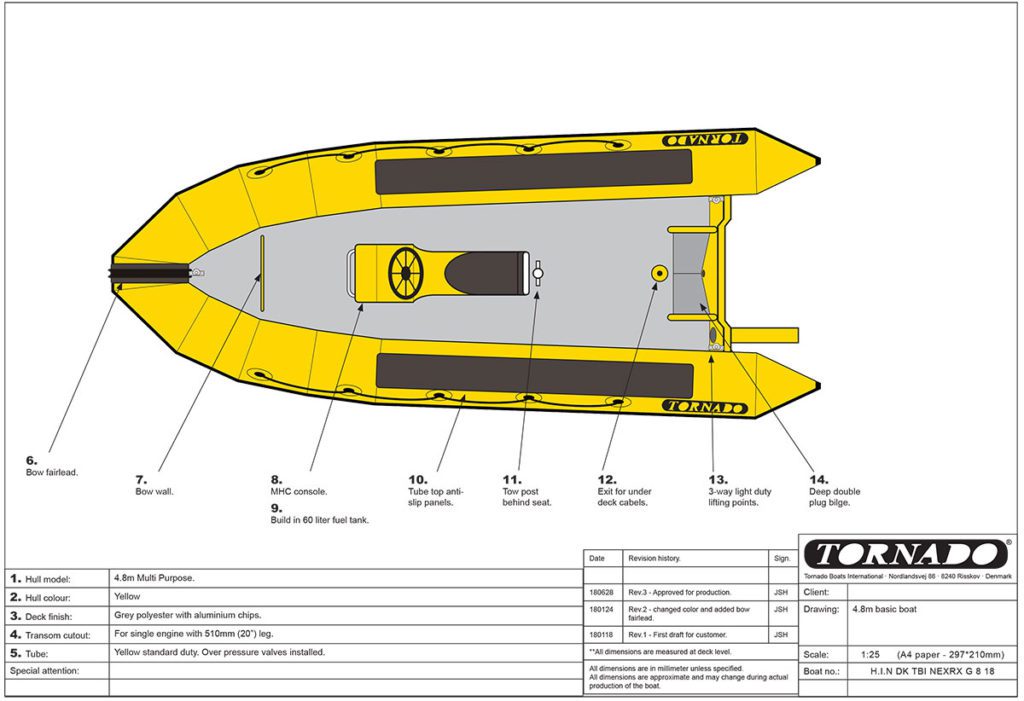

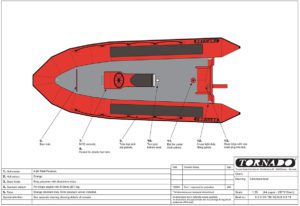

4.8M MULTI PURPOSE RIB

The 4.8m Multi Purpose RIB is one of the most popular boats in use by sailboat coaches today, but it is also well suited for a range of other uses including rescue, diving or police work.

TECHNICAL SPECIFICATIONS

Length4850 mm
Beam2000 mm
Weight275 kg*
Tube diameter450 mm
Capacity765 kg / 6 persons
Max engine70 hk / 120 kg
Air chambers5
Internal length3580 mm
Internal width1100 mm

* This is our estimate for a standard boat without options, engine and fuel.

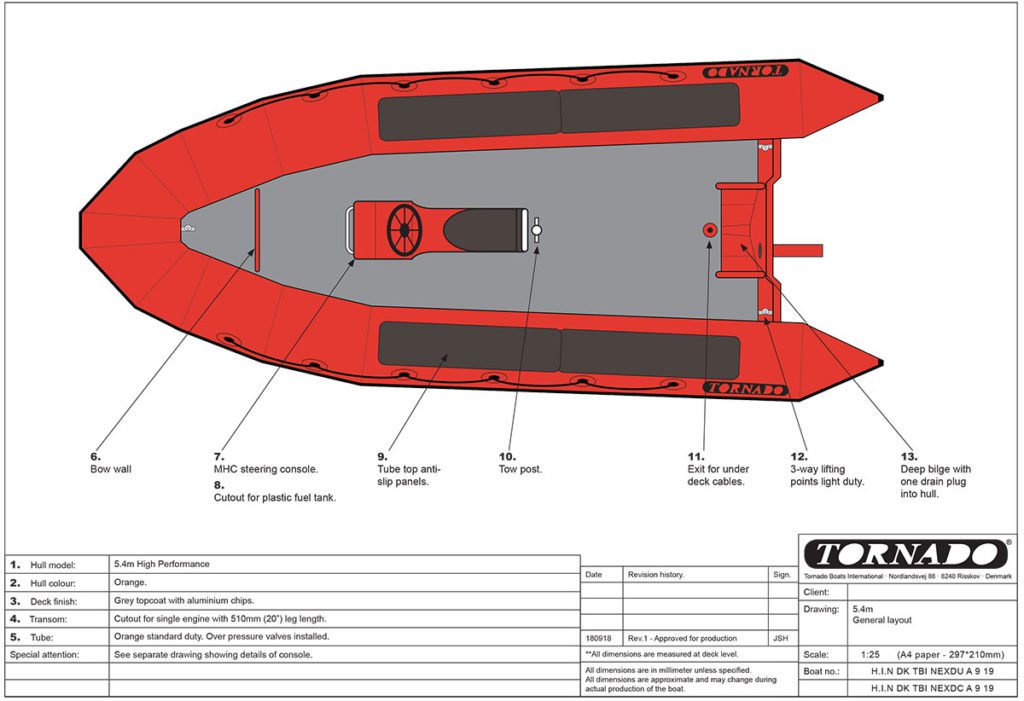

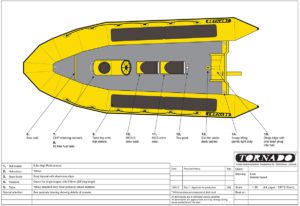

5.4M HIGH PERFORMANCE RIB

The 5.4m High Performance RIB is very suited for coaching, but it is also suited for a range of other purposes including rescue, diving or police work.

TECHNICAL SPECIFICATIONS

Length5550 mm
Beam2350 mm
Weight310 kg*
Tube diameter520 mm
Capacity1153 kg / 8 persons
Max engine100 hk / 120 kg (L); 165 kg (XL)
Air chambers5
Internal length4050 mm
Internal width1350 mm

* This is our estimate for a standard boat without options, engine and fuel.

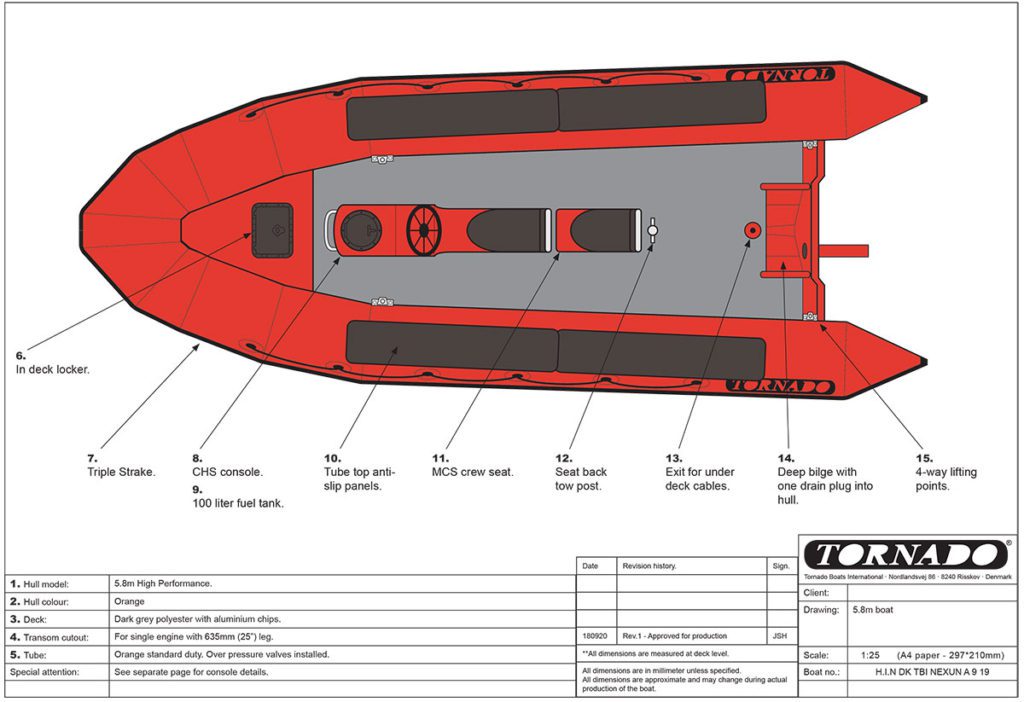

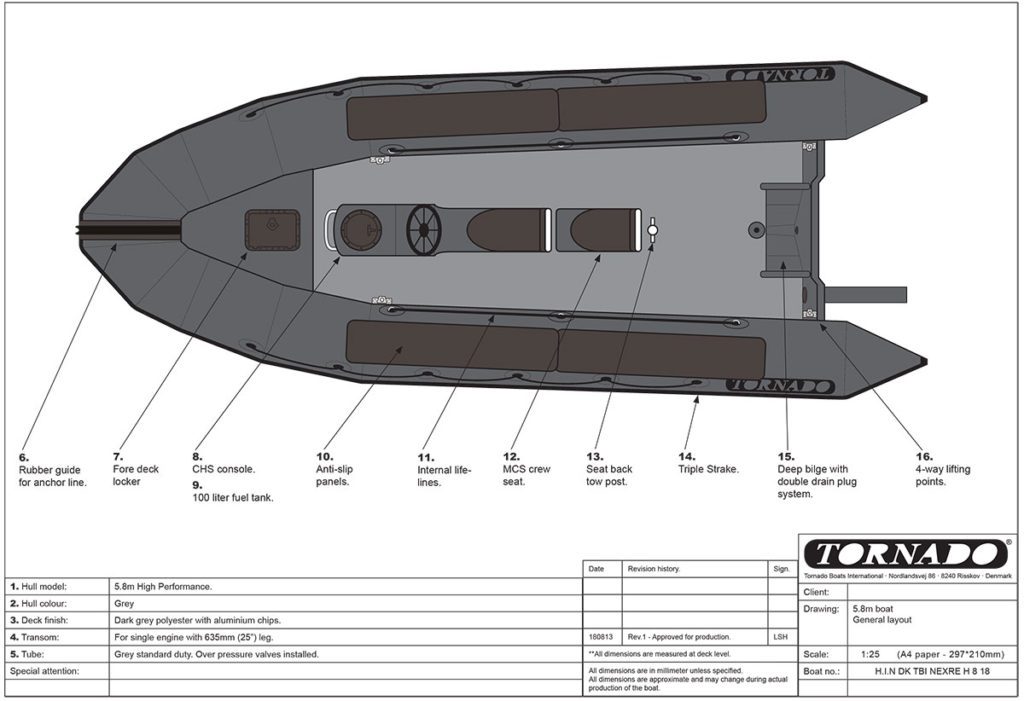

5.8M HIGH PERFORMANCE RIB

The 5.8m High Performance RIB is very agile and can turn in a tight radius. It’s extremely appropriate for coaching, rescue, diving or police work, and is also a very recommended model for the private user.

TECHNICAL SPECIFICATIONS

Length5800 mm
Beam2350 mm
Weight330 kg*
Tube diameter520 mm
Capacity120 kg / 8 persons
Max engine150 hk / 130 kg (L); 195 kg (XL)
Air chambers5
Internal length4250 mm
Internal width1350 mm

* This is our estimate for a standard boat without options, engine and fuel.

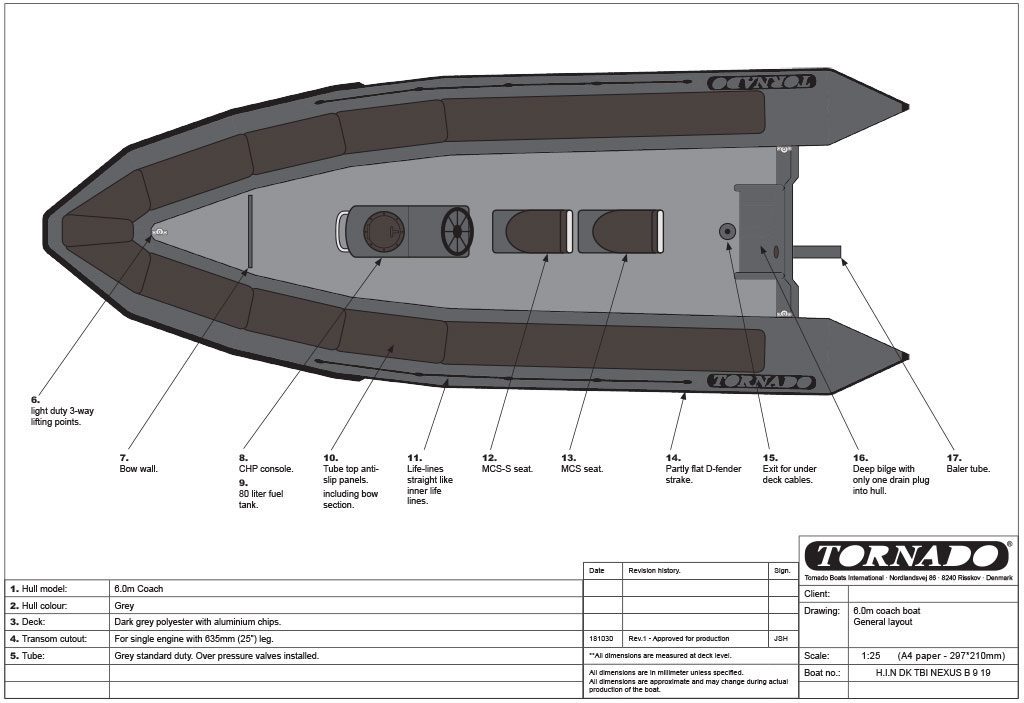

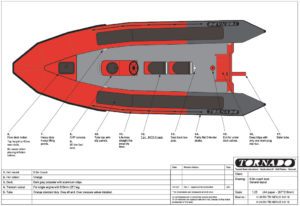

6M COACH BOAT

The Tornado 6m coach boat is a perfect fit. It has the maximum measurements allowed by the Olympic Committee and a reduced planing threshold, which increases the boat’s medium speed and its stability of direction and makes it very controllable.

TECHNICAL SPECIFICATIONS

Length5950 mm
Beam2250 mm
Weight330 kg*
Tube diameter520 mm
Capacity1200 kg / 8 persons
Max engine150 hk / 120 kg (L); 185 kg (XL)
Air chambers5
Internal length4550 mm
Internal width1250 mm

* This is our estimate for a standard boat without options, engine and fuel.

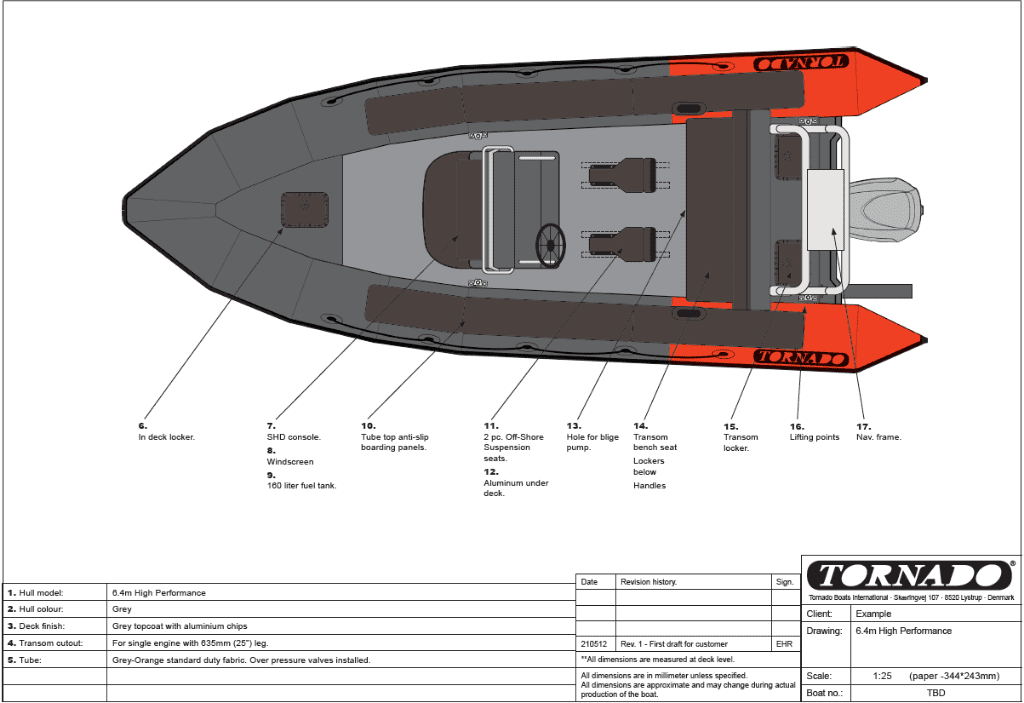

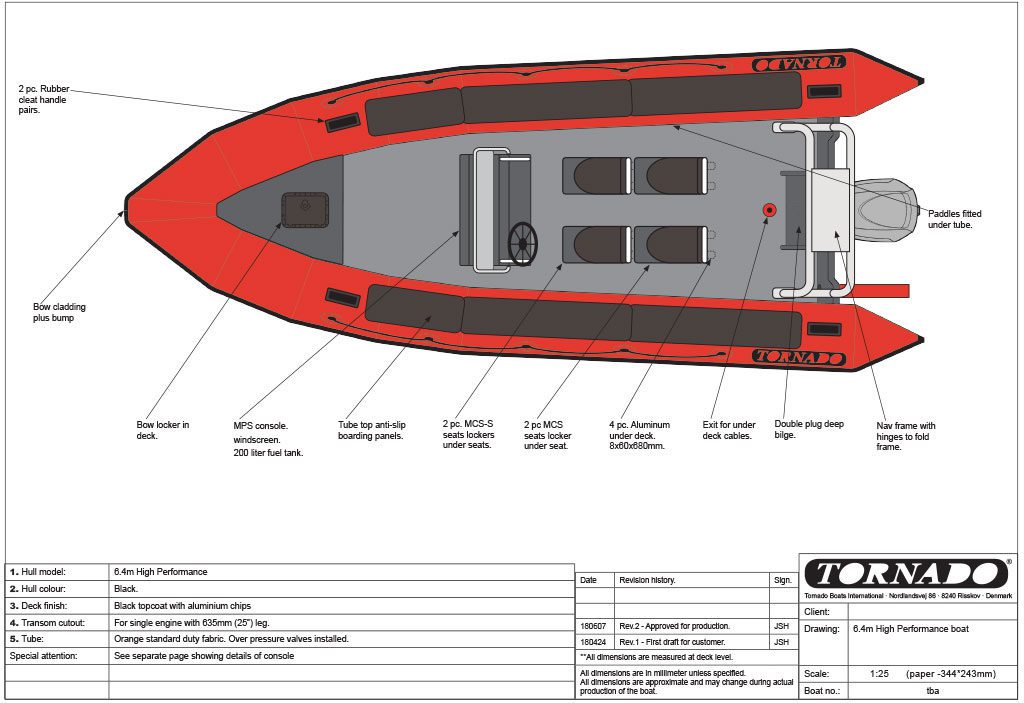

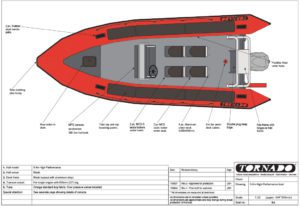

6.4M HIGH PERFORMANCE RIB

The 6.4m High Performance RIB can be fitted with almost all preferable accesories, and can thus be customized to a wide range of uses. This is one of our most versatile models in the High Performance category.

TECHNICAL SPECIFICATIONS

Length6450 mm
Beam2600 mm
Weight550 kg*
Tube diameter520 mm
Capacity1450 kg / 11 persons
Max engine175 hk / 260 kg (L); 185 kg (XL)
Air chambers5
Internal length4800 mm
Internal width1620 mm

* This is our estimate for a standard boat without options, engine and fuel.

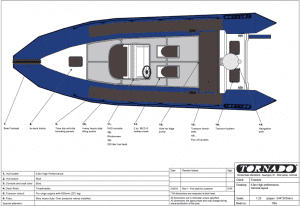

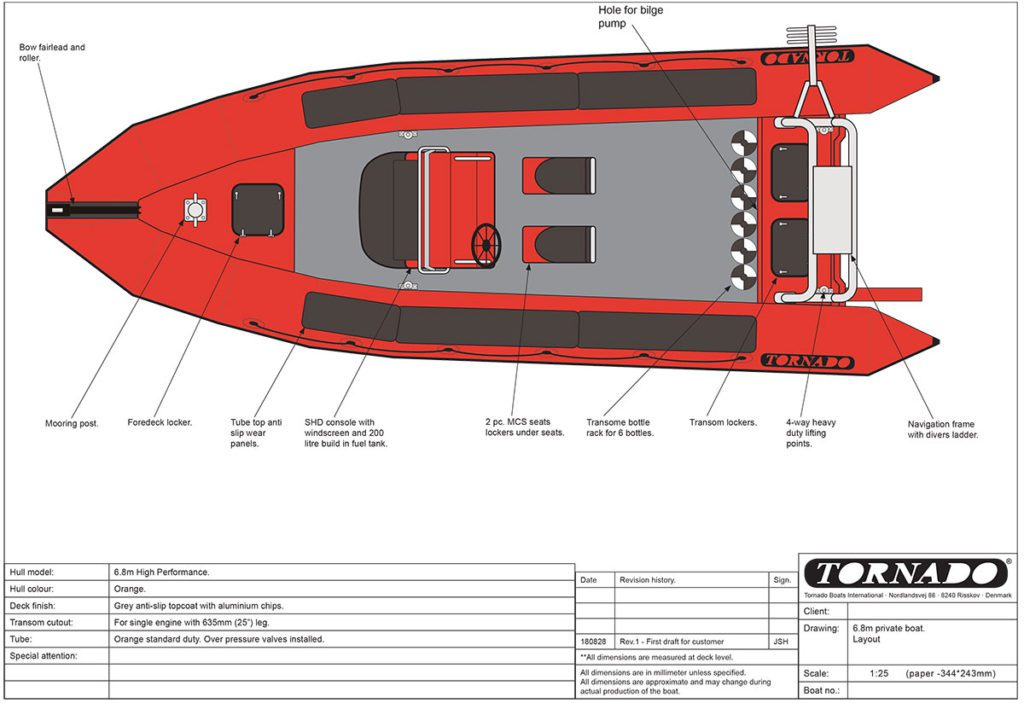

6.8M HIGH PERFORMANCE RIB

The 6.8m High Performance RIB is one of the most recent additions to the range. With multiple configurations, this model is ideally suited to a variety of uses.

TECHNICAL SPECIFICATIONS

Length7150 mm
Beam2650 mm
Weight690 kg*
Tube diameter520 mm
Capacity1220 kg / 8 persons (Cat. B) 1670 kg / 14 persons (Cat. C)
Max engine250 hk / 380 kg
Air chambers7
Internal length5500 mm
Internal width1650 mm

* This is our estimate for a standard boat without options, engine and fuel.

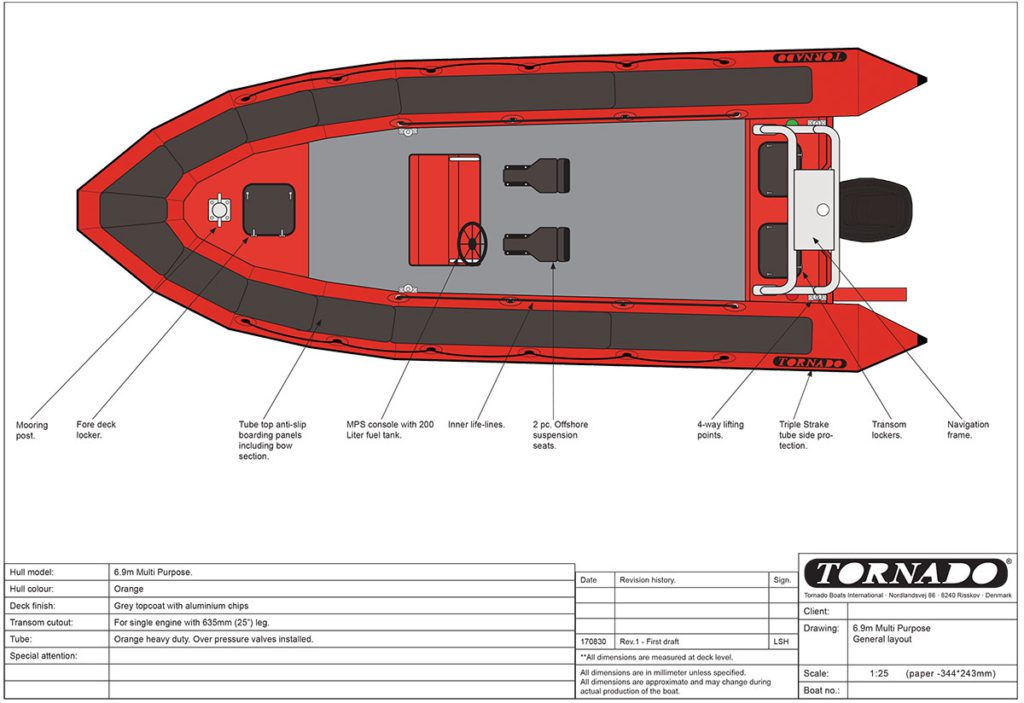

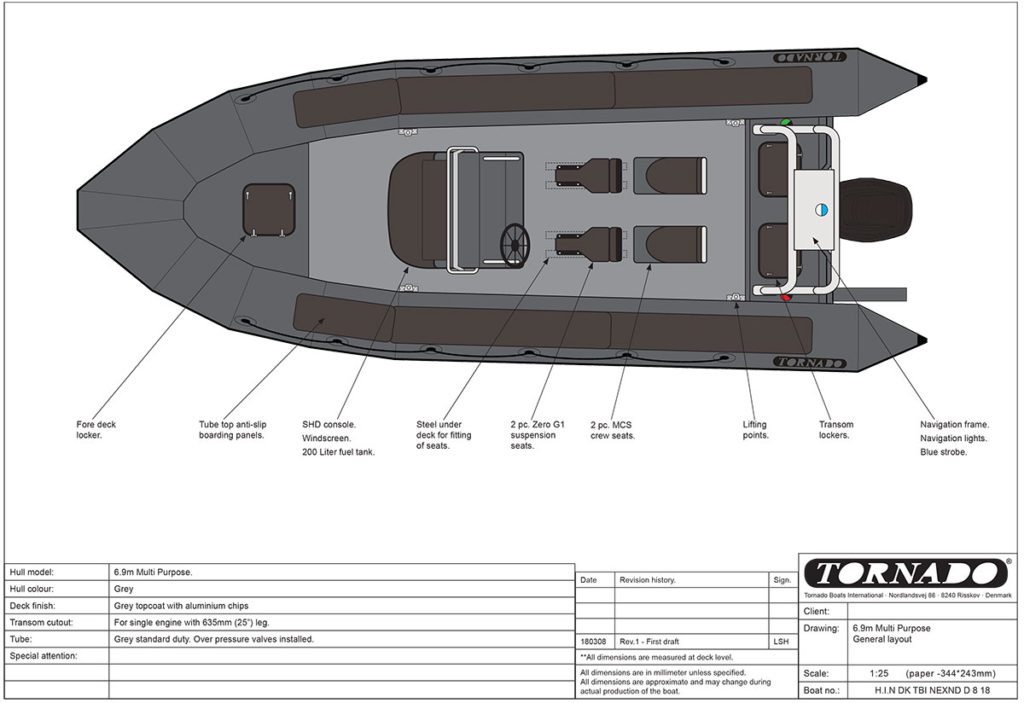

6.9M MULTI PURPOSE RIB

The 6.9m Multi Purpose Model is one of the most versatile RIBs in use by Dive Clubs and Commercial users.

TECHNICAL SPECIFICATIONS

Length6800 mm
Beam2550 mm
Weight622 kg*
Tube diameter520 mm
Capacity1600 kg / 12 persons
Max engine200 hk / 300 kg
Air chambers7
Internal length5300 mm
Internal width1550 mm

* This is our estimate for a standard boat without options, engine and fuel.

DRAWINGS OF BOAT EXAMPLES

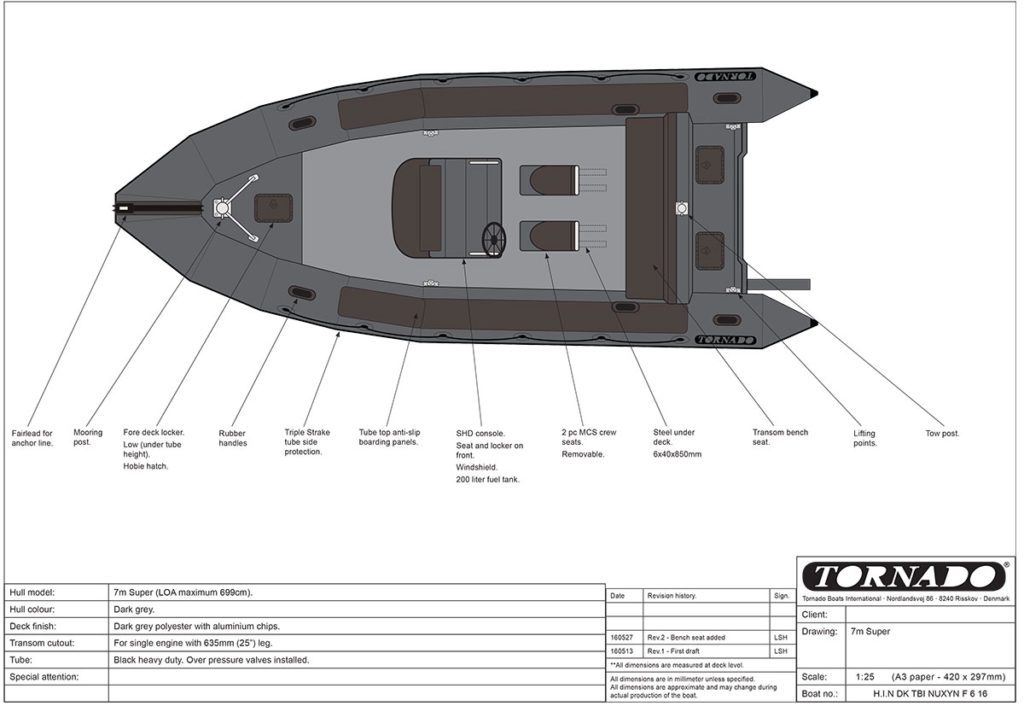

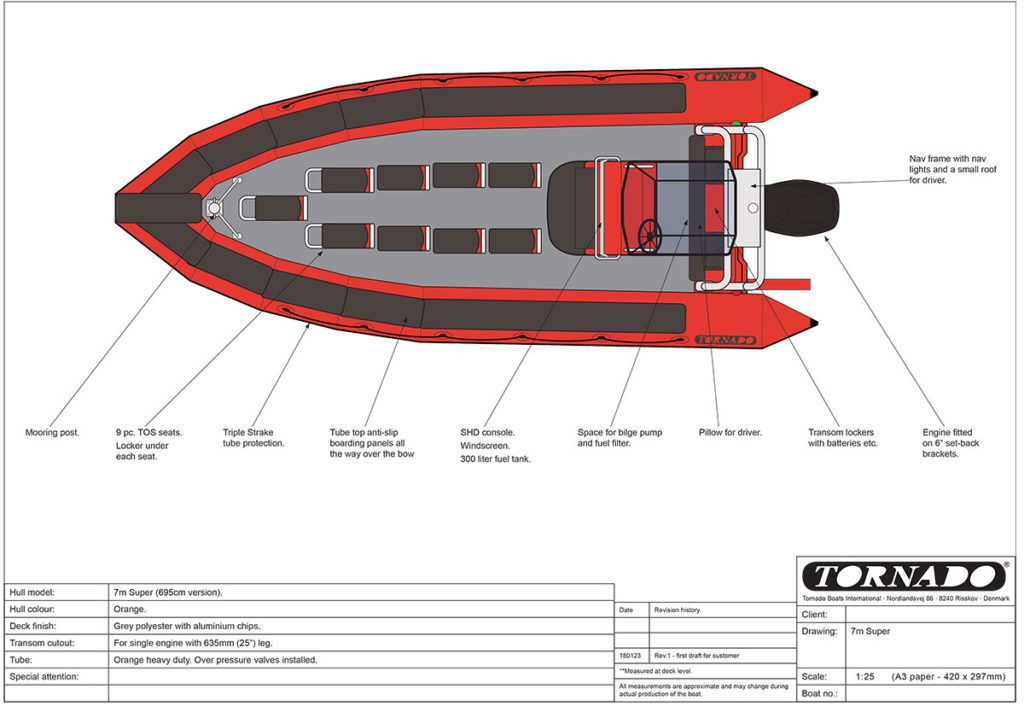

7M SUPER RIB

The 7.0m Super Model provides the user with the unique combination of solid performance for extended voyages while still maintaining a dry ride, making it a unique platform for any work at sea.

TECHNICAL SPECIFICATIONS

Length7200 mm
Beam2800 mm
Weight760 kg*
Tube diameter520 mm
Capacity1670 kg / 14 persons
Max engine200 hk / 350 kg
Air chambers7
Internal length5700 mm
Internal width1800 mm

* This is our estimate for a standard boat without options, engine and fuel.

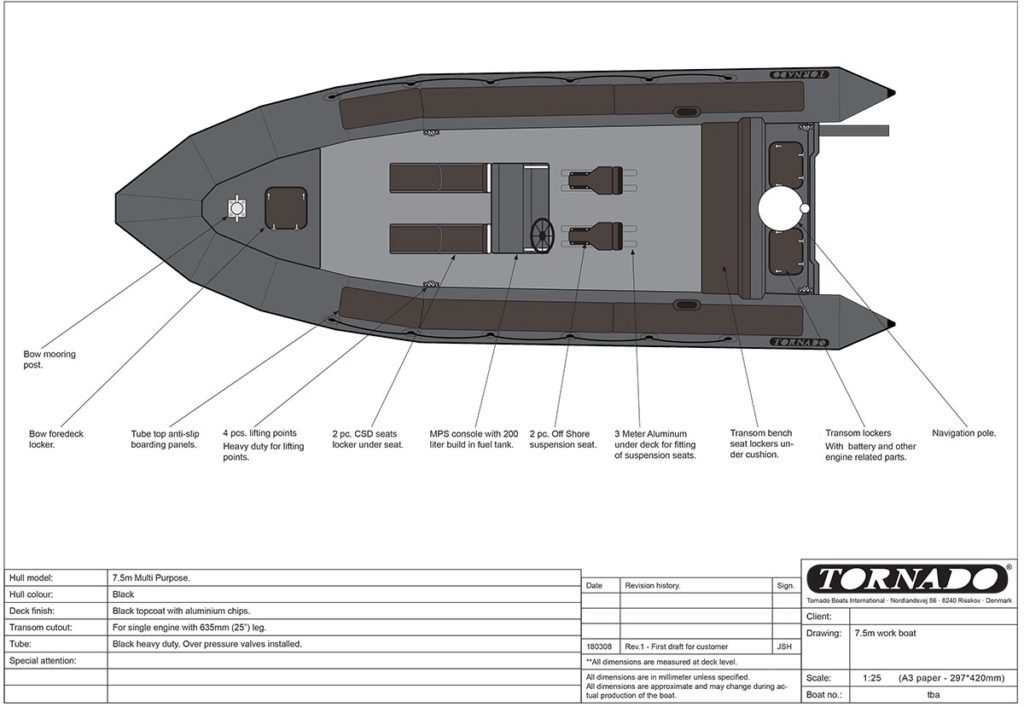

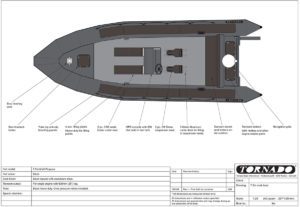

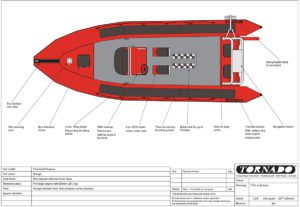

7.5M MULTI PURPOSE RIB

The 7.5m Multi Purpose Model offers enviable deck space and great load carrying facilities, combined with true offshore capabilities. It’s the ideal choice when unrivalled seakeeping in the most testing conditions are required.

TECHNICAL SPECIFICATIONS

Length7700 mm
Beam2800 mm
Weight884 kg*
Tube diameter520 mm
Capacity1200 kg / 10 persons (Cat. B) 1600 kg / 16 persons (Cat. C)
Max engine300 hk / 400 kg
Air chambers7
Internal length6200 mm
Internal width1800 mm

* This is our estimate for a standard boat without options, engine and fuel.

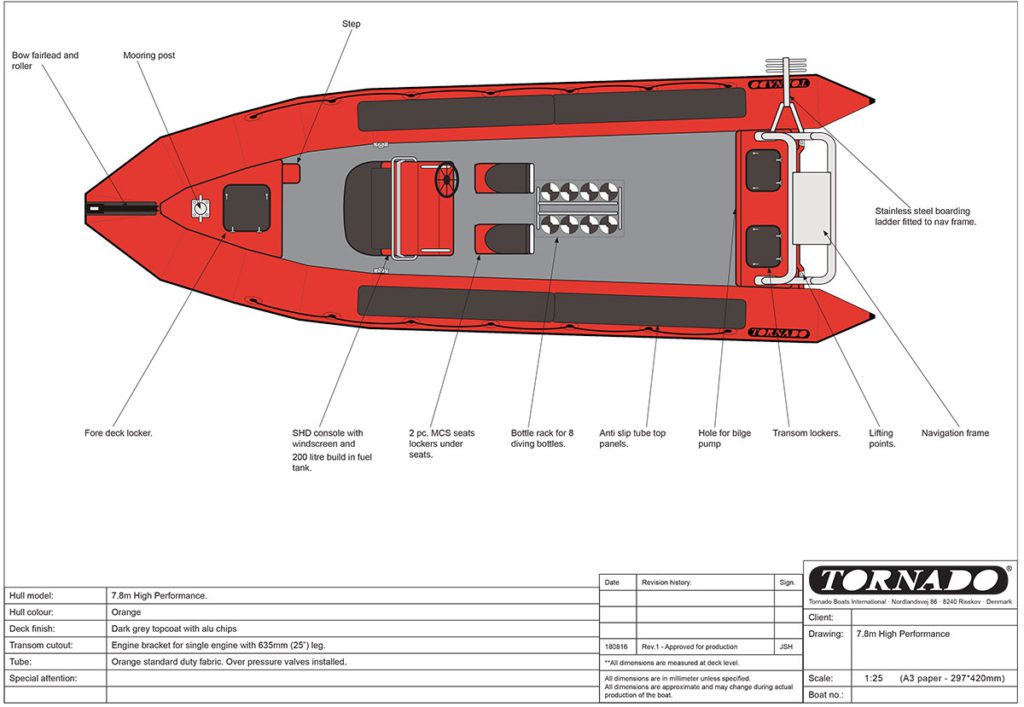

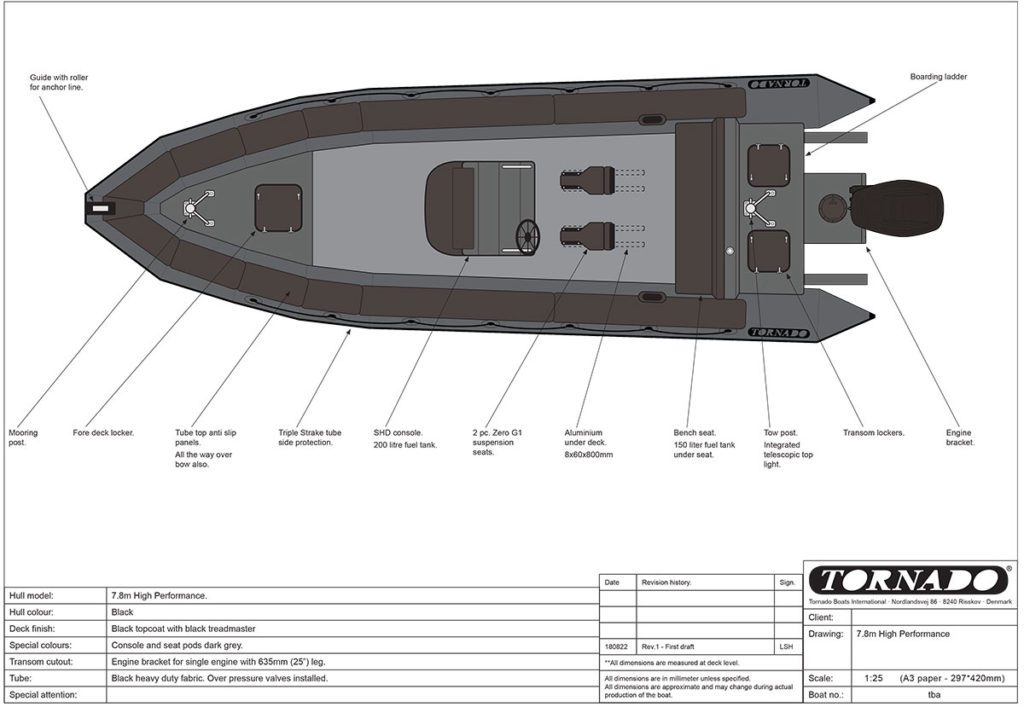

7.8M HIGH PERFORMANCE RIB

The 7.8m High Performance Model is one of the most versatile and capable offshore RIBs in it’s class, with a remarkable pedigree and performance to match regardless of its application.

TECHNICAL SPECIFICATIONS

Length7850 mm
Beam2700 mm
Weight805 kg*
Tube diameter520 mm
Capacity1440 kg / 10 persons (Cat. B) 1890 kg / 16 persons (Cat. C)
Max engine400 hk / 450 kg
Air chambers7
Internal length6200 mm
Internal width1720 mm

* This is our estimate for a standard boat without options, engine and fuel.

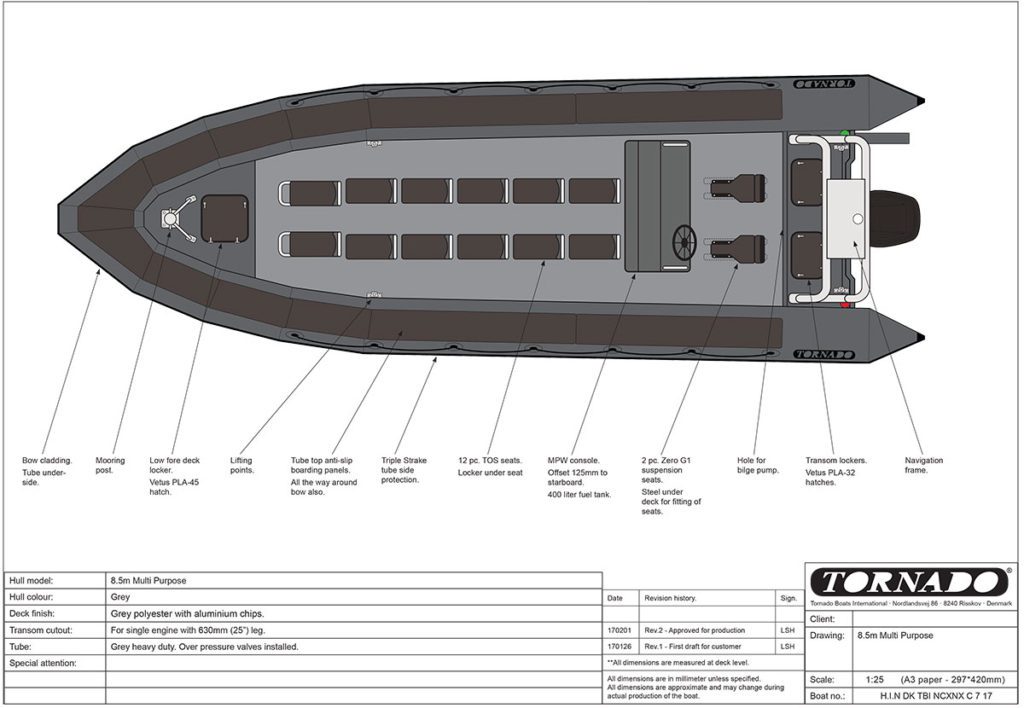

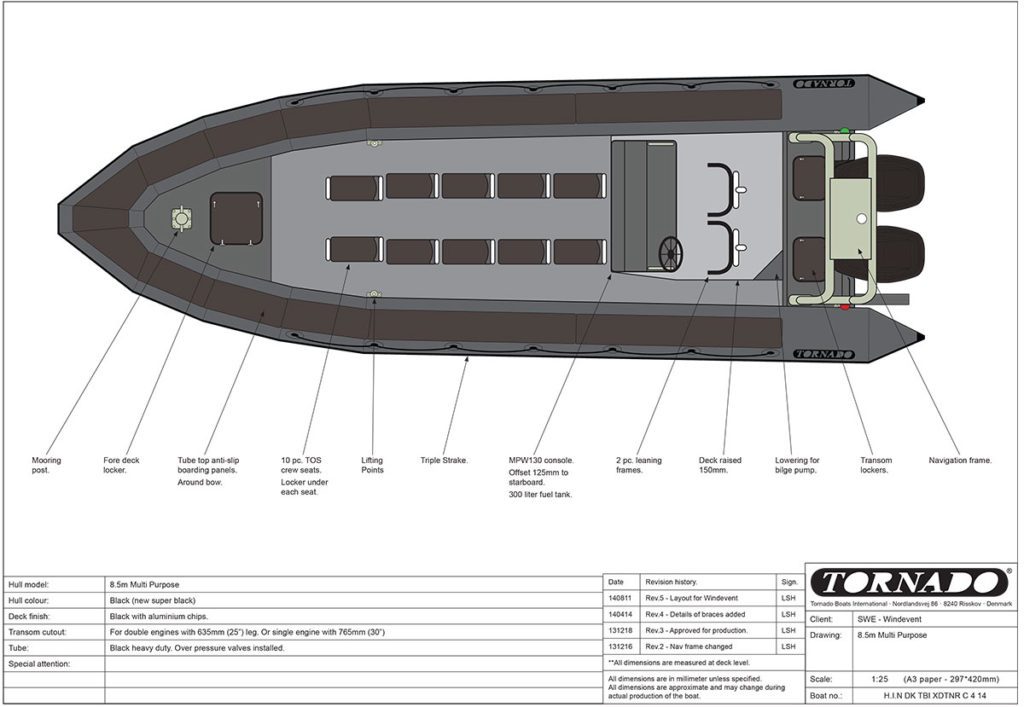

8.5M MULTI PURPOSE RIB

The 8.5m Multi Purpose RIB offers great load carrying capacity and gives the private or commercial user long range capabilities for a variety of operational uses.

TECHNICAL SPECIFICATIONS

Length8550 mm
Beam2800 mm
Weight1044 kg*
Tube diameter520 mm
Capacity1650 kg / 14 persons (Cat. B) 1950 kg / 18 persons (Cat. C)
Max engine500 hk / 550 kg
Air chambers7
Internal length7050 mm
Internal width1800 mm

* This is our estimate for a standard boat without options, engine and fuel.

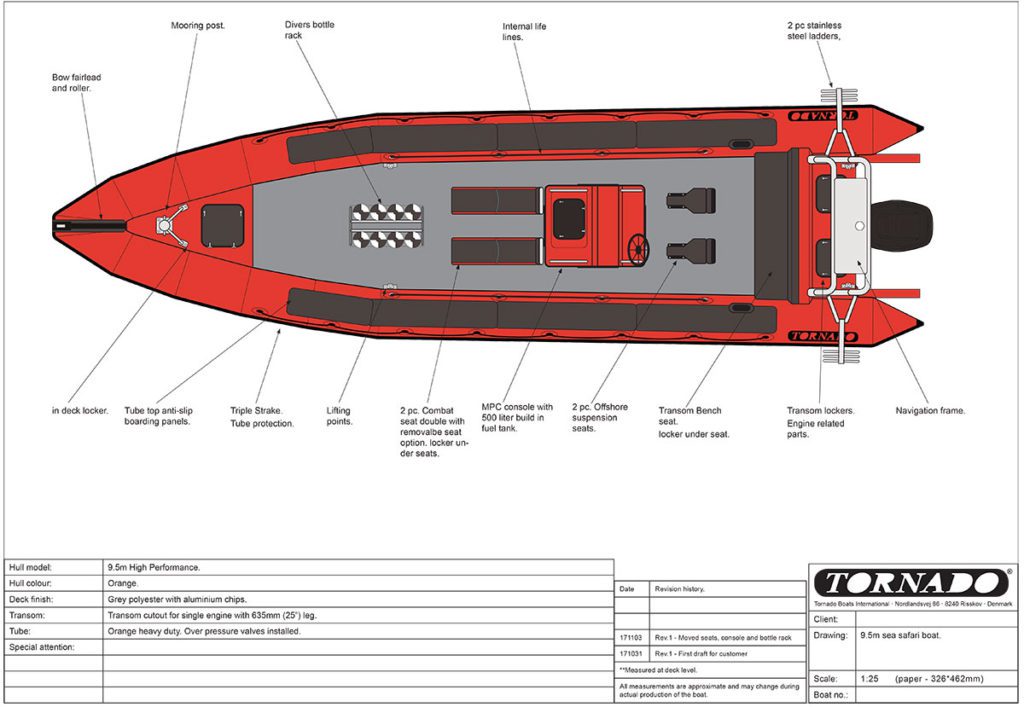

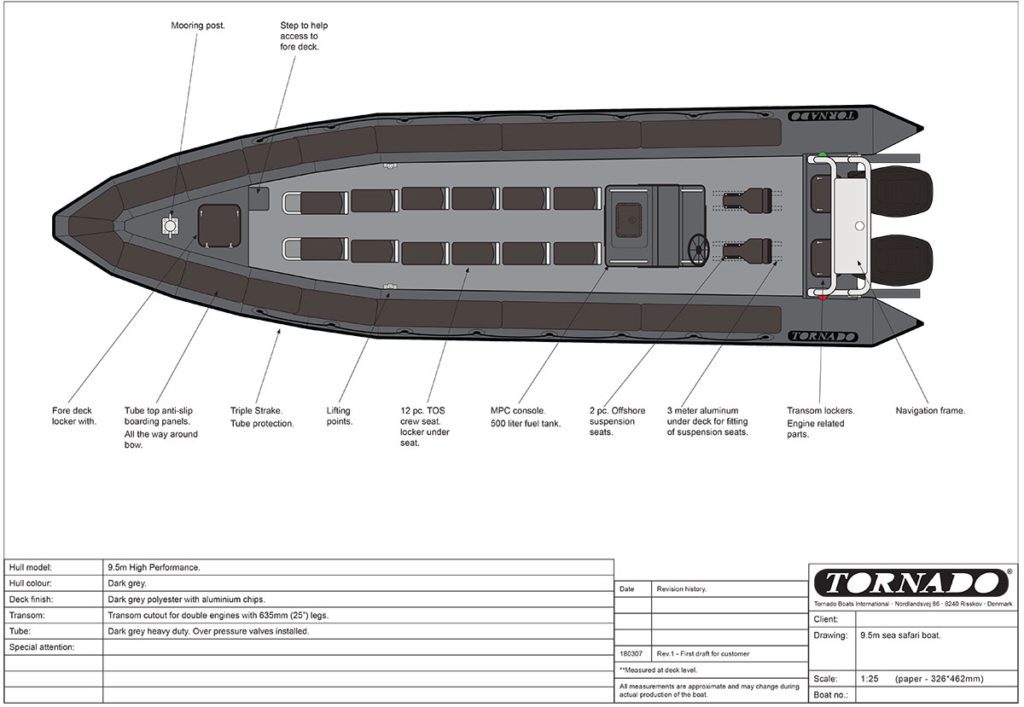

9.5M HIGH PERFORMANCE RIB

The 9.5m High Performance Model has been designed to provide a safe and efficient long range RIB, that has tremendous high speed seakeeping and performance abilities whilst maintaining a soft and comfortable ride.

TECHNICAL SPECIFICATIONS

Length9450 mm
Beam2700 mm
Weight1201 kg*
Tube diameter520 mm
Capacity1800 kg / 14 persons (Cat. B) 2100 kg / 18 persons (Cat. C)
Max engine600 hk / 700 kg
Air chambers7
Internal length8100 mm
Internal width1800 mm

* This is our estimate for a standard boat without options, engine and fuel.

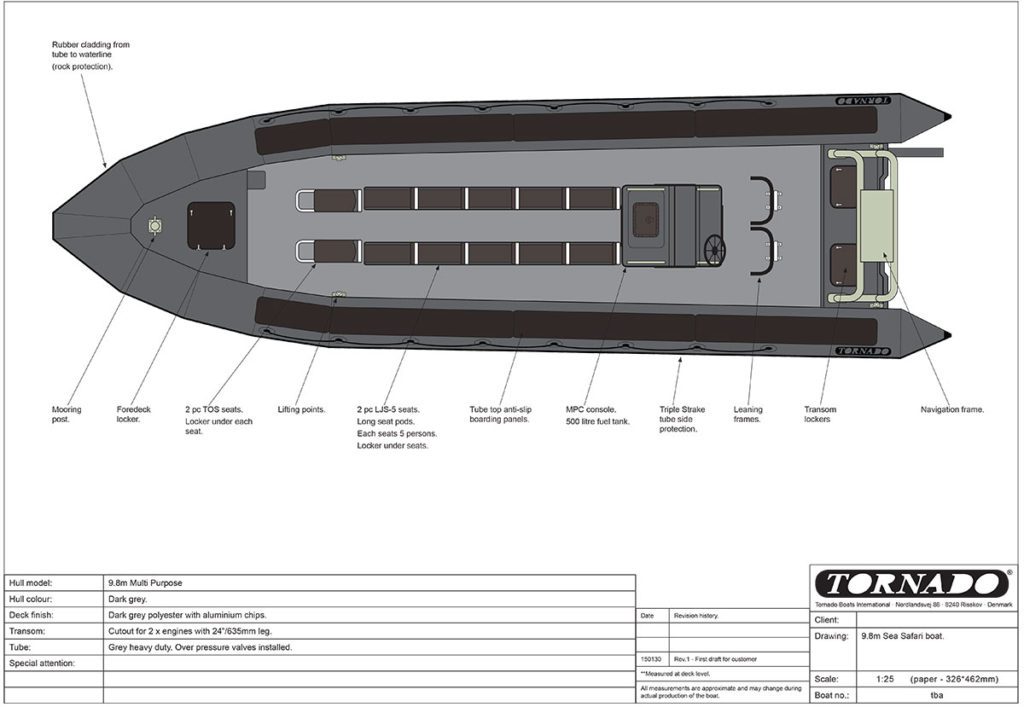

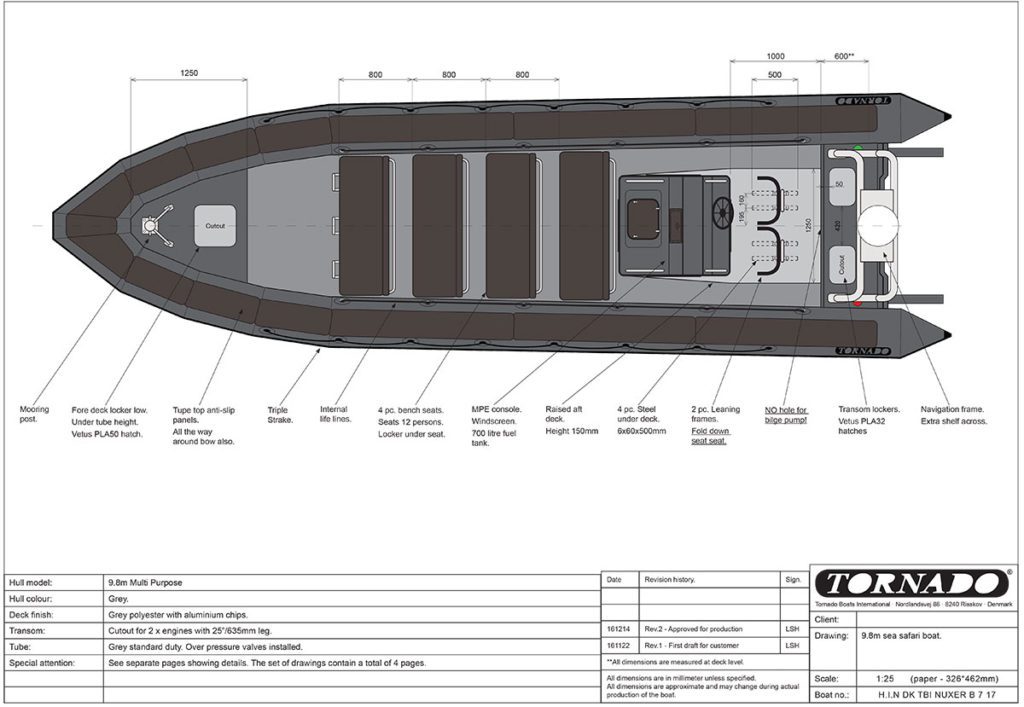

9.8M MULTI PURPOSE RIB

The 9.8m Multi Purpose Model offers superb load carrying capabilities and loads of deck space. The 9.8m RIB gives the private or commercial user superb long range capabilities in a variety of operational uses.

TECHNICAL SPECIFICATIONS

Length9800 mm
Beam2850 mm
Weight1100 kg*
Tube diameter520 mm
Capacity1925 kg / 15 persons (Cat. B); 2300 kg / 20 persons (Cat. C)
Max engine600 hk / 700 kg
Air chambers7
Internal length8300 mm
Internal width1850 mm

* This is our estimate for a standard boat without options, engine and fuel.

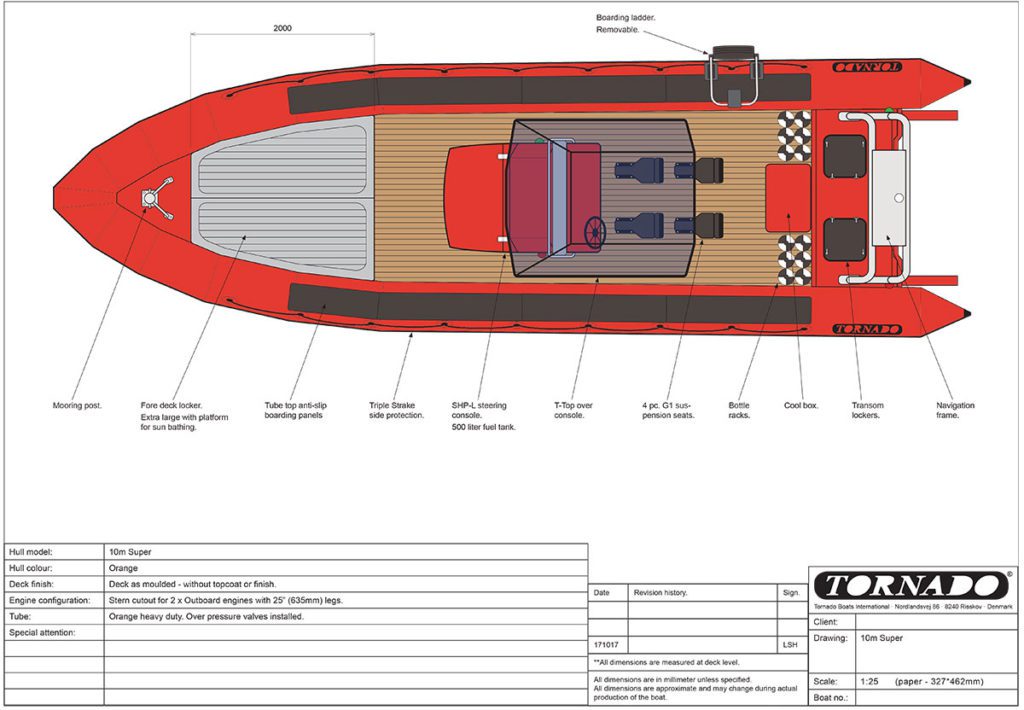

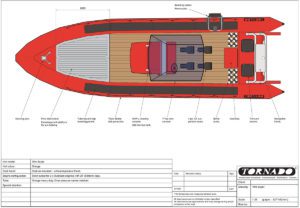

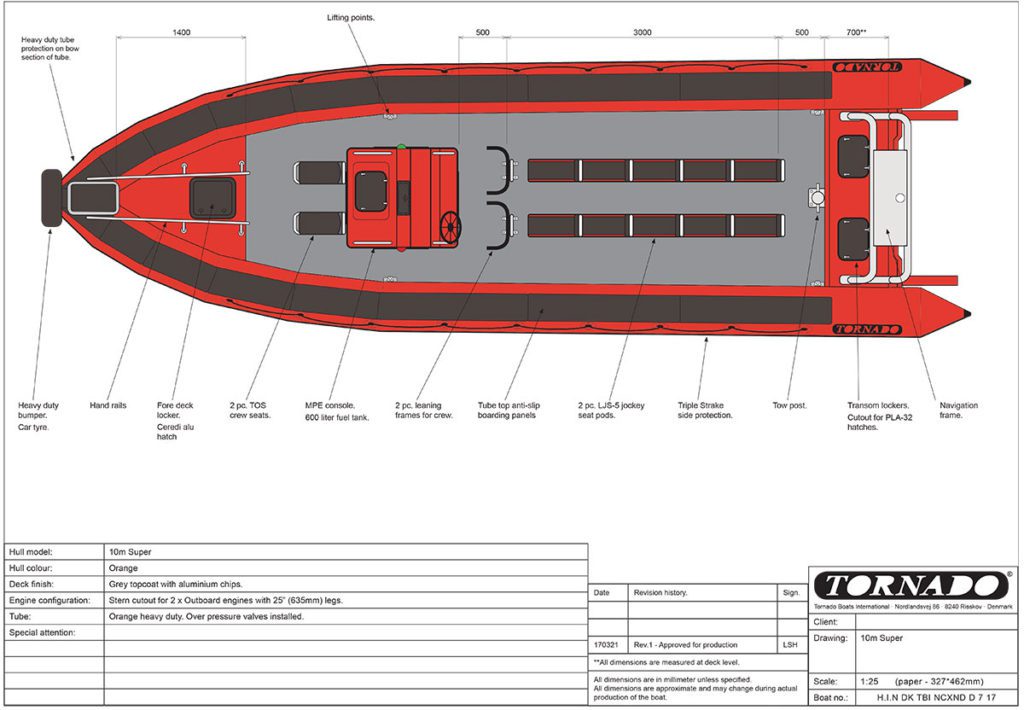

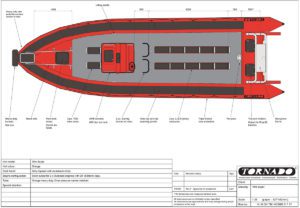

10M SUPER RIB

The 10m Super Model is a true high speed commercial load carrying RIB with enviable performance. It is made to operate at maximum speeds over long distances in a variety of conditions.

TECHNICAL SPECIFICATIONS

Length10000 mm
Beam3050 mm
Weight1200 kg*
Tube diameter520 mm
Capacity2200 kg / 16 persons (Cat. B) 2800 kg / 24 persons (Cat. C)
Max engine900 hk / 900 kg
Air chambers7
Internal length8500 mm
Internal width1950 mm

* This is our estimate for a standard boat without options, engine and fuel.

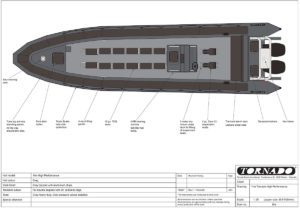

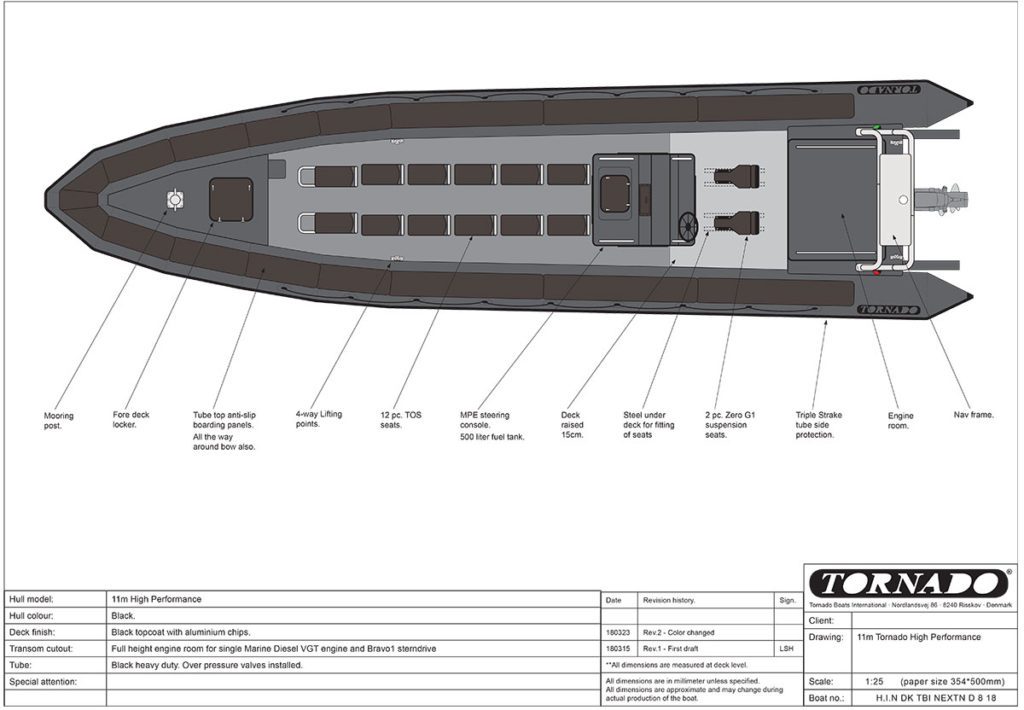

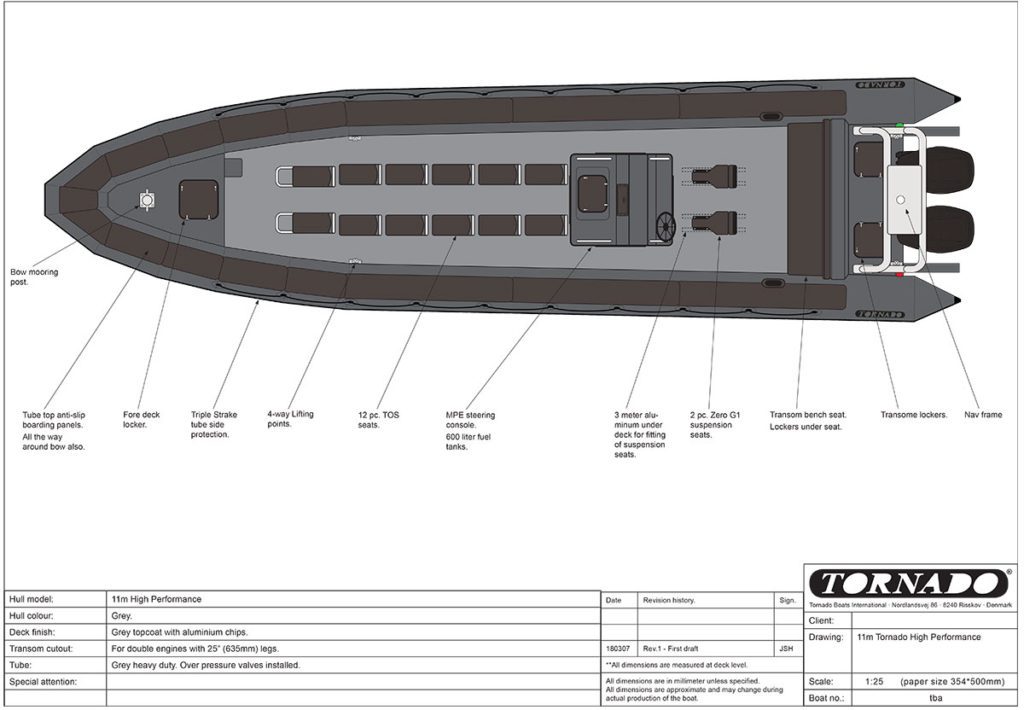

11.0M HIGH PERFORMANCE RIB

The 11m High Performance RIB was until recently, the largest in the fleet of High Performance models. This boat is of course well suited for use as a long range commercial High Speed RIB or for the serious cruiser.

TECHNICAL SPECIFICATIONS

Length11000 mm
Beam2850 mm
Weight1617 kg*
Tube diameter520 mm
Capacity2200 kg / 16 persons (Cat. B) 2425 kg / 19 persons (Cat. C)
Max engine900 hk / 900 kg
Air chambers7
Internal length9350 mm
Internal width1870 mm

* This is our estimate for a standard boat without options, engine and fuel.

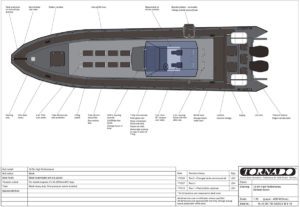

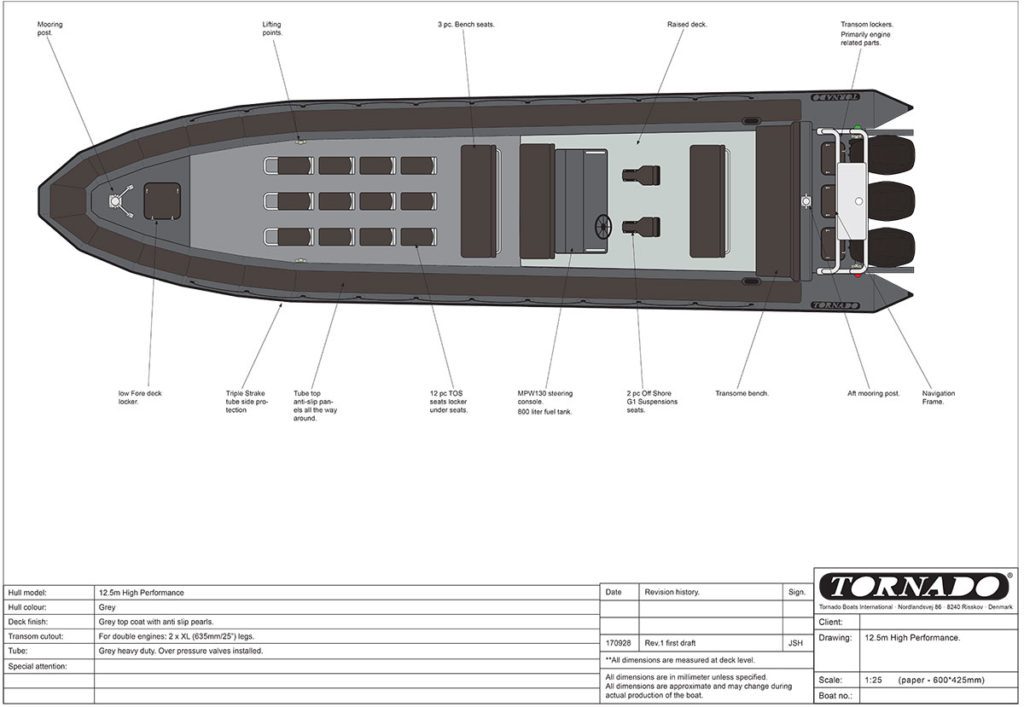

12.5M HIGH PERFORMANCE RIB

The 12.5m High Performance RIB is the latest addition to the fleet of very RIBs and is well suited for use as a long range commercial boat or for the serious cruiser.

TECHNICAL SPECIFICATIONS

Length12300 mm
Beam3150 mm
Weight1900 kg*
Tube diameter520 mm
Capacity2900 kg / 22 persons (Cat. B/C)
Max engine1050 hk / 1000 kg
Air chambers7
Internal length1050 mm
Internal width2170 mm

* This is our estimate for a standard boat without options, engine and fuel.
